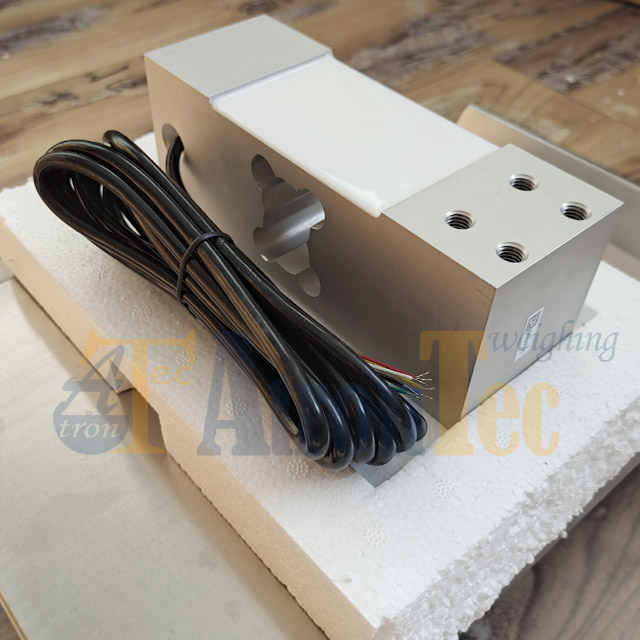

L6G
Aluminium-alloy IP65 single point load cell for platform scales
| Load Cell Features： | |
| Aluminium-alloy IP65 single point load cell | |
| Colourless anodized | |
| Suitable for single and double load cells structured platform scales | |
| Maximum platform size: 600 x 600 mm | |
| A 1000 Ohm type available (R1) but is excluded from OIML |
Load Cell Outline Size:
Load Cell Specifications:
| Accuracy class | OIML R60 C3 | OIML R60 C4 | |
| Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.2 | |
| Maximum capacity ( Emax ) | kg | 50/100/150/200/250/300/500/600 | 150/200/250/300/500/600 |
| Maximum number of load cell intervals ( nLC ) | 3000 | 4000 | |
| Ratio of minimum LC verification interval Y=Emax/vmin | 10000 | 15000 | |
| Combined error | %FS | ± 0.02 | ± 0.0150 |
| Minimum dead load | kg | 0 | |
| Safe overload | %FS | 120 | |
| Ultimate overload | %FS | 150 | |
| Zero balance | %FS | ± 2.0 | |
| Excitation, recommended voltage | V | 5 ~ 12 (DC) | |
| Excitation maximum | V | 18( DC ) | |
| Input resistance | Ω | 406 ± 6 | |
| Output resistance | Ω | 350 ± 3 | |
| Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | |
| Compensated temperature | ℃ | -10~+40 | |
| Operating temperature | ℃ | -35 ~ +65 | |
| Storage temperature | ℃ | -40 ~ +70 | |
| Element material | Aluminium | ||
| Recommended torque on fixation | N.m | M8:25 | |
| Ingress protection (according to EN 60529) | IP65 | ||
Load Cell Wiring
Load Cell application scope and purpose
For example, the aluminum alloy cantilever beam load cell is suitable for electronic price computing scales, platform scales, electronic table scales, etc.;
The steel cantilever beam load cell is suitable for electronic belt scales, sorting scales, etc.;
The steel bridge load cell is suitable for rail scales, truck scales, etc.;
The cylinder load cell is suitable for truck scales, dynamic track scales, large tonnage hopper scales, etc.
