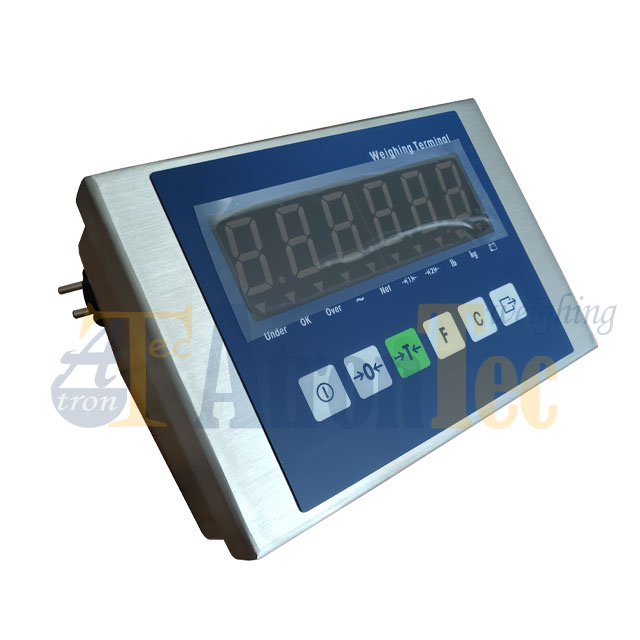

D236 LED Display Stainless Steel Weighing Scale Indicator for floor scale

D236 is an industrial weighing indicator for platform scales,animal scales,counting scales,truck scales,etc. This weighing indicator supports MODBUS-RTU communication and LAN,WIFI,Bluetooth as well.

Material:	A304 stainless steel housing
Display:	Green or Red LED
Serial Interface:	RS232 and RS232/RS485
Accuracy:	III
Load Cell:	350 Ohm x10 load cells
Availability:

Quantity:



Inquire Add to Basket

Model:
D236
Brand:
ATRONTEC

Product Description

D236 Stainless Steel Weighing Scale Indicator for floor scale

D236 is a multifunction weighing indicator with rich options. This weighing indicator can be widely used in bench scales, floor scales, counting weighing, animal weighing, truck scales,etc. A304 Stainless steel housing,high accuracy,stable weighing functions enable this unit earn good reputation in global market.

Weighing Indicator Features:

* A304 stainless steel case

* 200,000 display resolution

* Two display increment size range

* 6 bits 49mm high Green or Red LED display

* Weighing function: ZERO、TARE、CLEAR and PRINT

* Auto Tare, Auto Clear, Auto Print, Print and Accumulation

* X10/Classifying/Counting/Animal weighing

* Over/Under/Ok relay output is supported

* 2 standard serial ports: RS232 and RS485

* Load cell: Max 10 x 350Ω

* Power supply: 110VAC ~ 220VAC

* Modbus-RTU is supported

Weighing Indicator Options:

* Lead-Acid cell battery, 6V4.0AH

* TCP/IP LAN port Option

* WIFI module

* Blue tooth module

Weighing Indicator Specifications:

Accuracy Class	III
Approval	200,000 Display resolution
Increment Size	Two display increment size range
Display	6 bits 49mm high green or red LED display & 10 status lights
Update Speed	100ms
Status Display	Over/Under/OK, Counting, KG/LB, Center of Zero, Net/Gross, Motion, Battery
Power On/Off	Support
Calibration	2-point , 3- point , 5-point
Filter	3-step
Scale Process	Tare,Zero,Auto Zero,Motion,Auto Tare,Auto Clear,Auto Print & Accumulation
Serial Port	COM1-RS232,COM2-R485, MODBUS-RTU, continuous output weight, Print barcode weight, Print weighing records, Demand Input/Output, Mettler-Toledo SICS
TCP/WIFI	Continuous output weight, Demand input/output
Blue Tooth	Continuous output weight, Demand input/output
Temperature	-10℃~40℃ , 95％ RH

Weighing Indicator Configurations:

A0001	Desk-type,IP66,No battery, green display, 2 serial ports:RS232+RS485(MODBUS-RTU)
A2001	Desk-type,IP66,lead acid charging battery,green display,2 serial ports: RS232+RS485(MODBUS-RTU)
T0001	Desk-type,IP66,No battery,2 serial ports:RS232+RS485(MODBUS-RTU), LAN Port(TCP,UDP)
W0001	Desk-type,IP66,No battery,green display,2 serial ports:RS232+RS485(MODBUS-RTU) ,WIFI(TCP,UDP)
Y0001	Desk-type,IP66,No battery,green display,two serial ports:RS232+RS485(MODBUS-RTU) ,Blue-Tooth
