D231 Plastic Housing Weighing Scale Indicator with WIFI Function
- Compatible to Mettler-Toledo IND231/IND236
Weighing Indicator Display
Weighing Indicator ADC
Scale number: 1 x scale is supported
Driving voltage: 5VDC
Input signal range: 0~19mV(for load cell of 2mV/V and 3mV/V)
Accuracy: CAP 6000e, 200000d
Calibration mode: 2-point/3-point/4-point/5-point weight calibration
Weighing Indicator Communication Interface
Other Specifications of Weighing Indicator
I/O: 1x INPUT/3x Output,three color alarm light is optional
Power: 220VAC
Material: ABS
Application: for all kinds fo platform scales
Weighing Indicator Configuration
| 3Y0001 | ABS,round bracket,No battery,green display,two serial ports:RS232+RS485(MODBUS-RTU),Blue-Tooth |
| 3T0001 | ABS,round bracket,No battery, green display,two serial ports:RS232+RS485(MODBUS-RTU),LAN Port(TCP,UDP) |
| 9A2001 | ABS,square bracket,lead acid charging battery,green display,two serial ports:RS232+RS485(MODBUS-RTU) |
| 9Y0001 | ABS,square bracket,No battery,green display,two serial ports:RS232+RS485(MODBUS-RTU), Blue-Tooth |
| 9T0001 | ABS,square bracket,No battery,green display,two serial ports:RS232+RS485(MODBUS-RTU),LAN Port(TCP,UDP) |

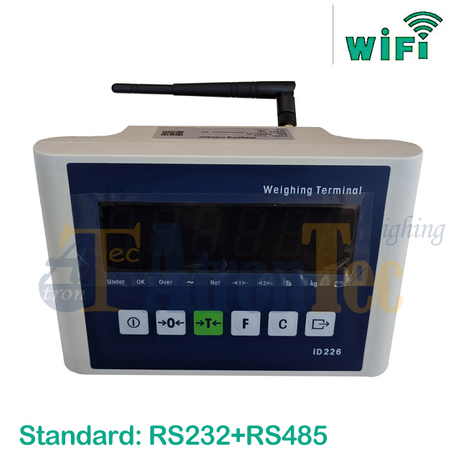

Weighing Indicator Pictures:
